Lathe
Vertical Lathe TOSHIBA TD-40/ 65S
φ6500 T:φ4000 4jaw chuck 0.8～40rpm（18steps） AC75Kw(Invertor) Table load：50ｔ Rotation force: 16ｔ・m Table to under cross rail: 4000mm …
Vertical Lathe OM TMS2-20/55
φ5500 Table：φ2000＋φ4000 Work height：1600mm Ram tilt:30° Table load:20ｔ Rotation force:4000Kg･m Cutting force:3000Kg Bite:□40mm Ma…
Vertical Lathe OM TMS2-20/55
φ5500 Boring Mill Jaws Table：φ2000 Work height：1600mm Ram tilt:30° Table load:20ｔ Rotation force:4000Kg･m Cutting force:3000Kg Bi…
Vertical Lathe TOSHIBA TSS-20/40A
φ4000 T：φ2000 X-1740 Z-1000 4 jaw chuck Cross-1650㎜ Work height：2200㎜ Table～Arm: 2390mm Ram tilt abgle-30° 3.2～100rpm Table load:16t R…
Vertical Lathe TOSHIBA TX-16A
φ2000×work height 1500 T:φ1600 Table rotation:3.6～160rpm(12 step) Load: 8Ton Tool post: -100～1000 Ram-1000 Ram slant: ±30° Cross rai…
Vertical Lathe NAKAYAMA NVT-2200
φ2200×1250ｈ φ1800 4 jaw chuck 5P turret Max load：6Ton 2.5～125rpm 12 steps 30Kw Turret elevator-750 Cross rail-700 Turret side to sid…
Face lathe TSUDA TFL-1600
φ1200×1200 Gapφ1600 Bed width: 750 φ1260 4jaw independent chuck 5～350rpm 12step 11Kw Bite □40 Tail stock：MT-6 S-260
LATHE SEIBU LHC-2712
φ890 Gapφ1250 Gap width375 Bed width650 φ1000 Independent chuck 6.5～650rpm 16steps Bed length2740mm Motor11Kw
LATHE CHUBU CLL-1500
φ750*1500 gapφ1000 Crossφ435 φIndependent chuck 18-825rpm Face plate Steady rest
LATHE HAMATSU HAT25
φ530×1000 gapφ735 Crossφ300 inch chuck Independent chuck Face plate 20-1500rpm(12 speeds) Boreφ56 Opposed tool post
LATHE TAKISAWA TAL560*2500
φ560*2500 Carriage pitchφ430 Soul 10 inch scroll chuck 25-1500rpm (12 steps) 7.5Kw
Vertical Lathe O M VTO-12
φ1600 Table：φ1200mm Work piece height：1030mm Table load：4000kg 3.6～180rpm Turret head
Vertical Lathe O M TMS2-20/40
φ4000 Table：φ3000 Work height：1500mm Ram tilt:30° Table load:15ｔ Cutting force:3000Kg Bite:□38mm Main motor：37Kw4P
Vertical Lathe TOSHIBA TSS-20/40A
φ4000 T：φ2000 Cross-1450mm 3.2～100rpm(16steps) Table load：16t Table to arm：2190mm Ram tilt abgle-30° Square Ram stroke:1000(vertical)・…
Vertical Lathe OM TM0-12
φ1500 T:φ1200 Machining height:930 3-150rpm Load weight:4000kg Bite□38 Rail head rum Horizontal-852 Vertical-700 Tilt:cro…
Vertical Lathe TOSHIBA TX-13
φ1600×work height1050 T:φ1250 4.5～200rpm(1step) Max load：5Ton Tool post-100～800 Ram-750 Cross-600 Ram slant: ±30° Degital 2 axis …
Heavy Duty LATHE TAKISAWA TALX-950×8000
φ950×8000 Gapφ1200 Crossφ630 φ705 4 jaw chuck 17~850rpm 12 steps 15Kw Bore φ82
Heavy Duty LATHE TSUDA TBL 2300－5000
φ2250×5240 Crossφ1600 hardening bed Bed width1350×length8400 Core between the support weight：15Ton φ2300 4jaw chuck 2～105rpm 12step 3…

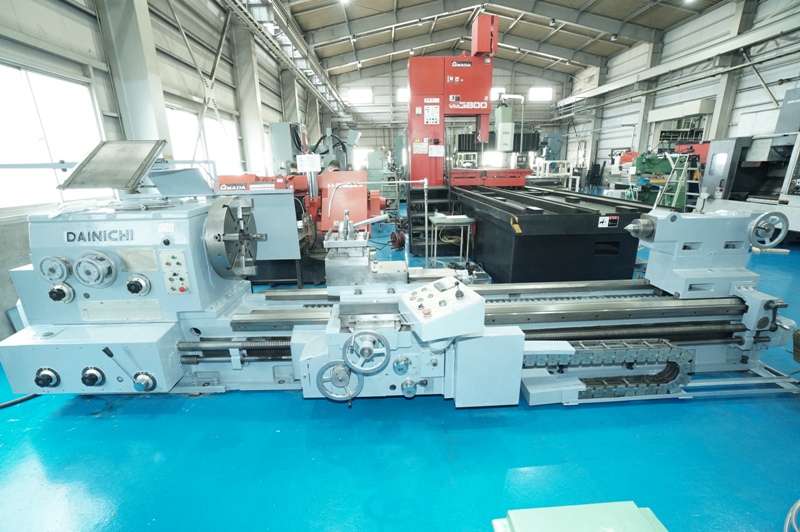

Heavy Duty LATHE DAINICHI DMG32-700
φ1120×7000 Gapφ1400 Crossφ800 Bed width 635×Length 9100 φ705 4 jaw chuck 6.3～500rpm 16steps 15Kw Steady restφ800・φ600 Z axis digita…
Heavy Duty Lathe DINICHI H160-600
φ1600×6000 Crossφ1200 bed width 1010×length9500 bearing load between core：16Ton φ1000 4jaw chuck 0.8～160rpm 24step 37Kw …
Heavy Duty LATHE SEIBU LHS-4316
φ1070×2500 Gapφ1600 Bed width:770 digital3 axis φ1200 4 jaw chuck 0～350rpm Bed length 4340mm motor18.5Kw
GAP LATHE SEIBU LHS-3612
φ890×1800 Gapφ1250mm Bed width650mm φ1000 Independent chuck 3～300rpm 16steps Steady rest Boreφ75mm Motor11KW
LATHE SEIBU LHS-2410
φ750×1000 Gapφ1000 Saddleφ460 φ1000 Independent chuck 4～400rpm(16steps) with scale
GAP LATHE TSUDA TFL-1600
φ1200×1200 Gapφ1600 Bed width: 750 φ1200 4jaw independent chuck 5～350rpm 12step Bore: φ52 Motor: 11Kw Tail stock: MT-6 Cross …
LATHE FUKUMO TS-1500
φ1100×2000 GAPφ1540 Crossφ740 φ1300 jaw chuck 6～250rpm 12step Boreφ75 11Kw Tail stock
LATHE MAZAK REX870-3000
φ870×3055 GAPφ1130 Crossφ630 φ380 3jaw chuck 12～1200rpm 16step Boreφ104 Tail stock-300mm MT-6 2axis digital Steady rest 2set
LATHE DAINICHI DHM-85-3000
φ850×3000 Crossφ580 φ550 4jaw independent chuck 7～1250rpm Steady rest:2sets Face plateφ800
