Vertikal bearbeitungszentrum
Vertical Machining Center MAZAK VCN410BⅡ HS
MX-NEXUS T:1100×410 X-762 Y-410 Z-510 ATC-30 Table~Spindle: 660mm 18000rpm BT40 AC30Kw（40HP) X/Y/Z axis ball screw axis center cooling…
Vertical Machining-center MAKINO V-77
Professional-5 ATC-20 T:1400x700 Pallet: 1250×630×2APC X-1200 Y-700 Z-650 High column-200㎜ 50～12000rpm BBT-50 AC22Kw More less sc…
Vertical Machining Center MAKINO V-33
Professional 5 T:750×400 ATC-15 X-600 Y-400 Z-350 200～20000rpm HSK-63 Super GI.4 control Rigid TAP Helical interpolation Scale feedba…
Long Vertical Machining-center FUJI SEIKI FMC-6/20V
F-18iM T:2200×630 X-2000 Y-600 Z-560 110～3600rpm BT-50 ATC-16 Torque: 230N・m Table～Spindle: 200～760㎜ High pressour coolant 0.3MPa Co…
Vertical Machining-center MORI SEIKI DuraVertical 5060
MSC-504 T:900×600 ATC-30 X-600 Y-530 Z-510 10000rpm BT-40 RENISHOW Touch sensor Program memory 640m AI outline control Common veriable…
Vertical Machining-center OKUMA HOWA MILLAC-611VL
OH-OSP-Hmi Conversation I-MAP T:1600×610 X-1300 Y-610 Z-560 30～6000rpm BT-50 15Kw ATC-30 Table load：1500Kg Helical interpolation Synch…
Vertical Machining Center MAKINO V55-A15
Professional 3 T:1000×500 X-900 Y-500 Z-450 20000rpm HSK-63 ATC-15 Super GI control XY scale feed back 1μm Trough spindle coolant(15…
Vertical Machining-center MAKINO V55-A80
Professional-3 T:1000×500 X-900 Y-500 Z-450 20000rpm HSK-63 ATC-80 Super GI control Moreless scale feed back 1μm Through spindle coola…
Vertical Machining-center OKK VM5Ⅱ
F-16iM T:1050×560 ATC-20 X-820 Y-510 Z-510 6000rpm BT-50 Helical interpolation Custom macroB 3-axis Pahandre Tooling
ROBO DRILL FANUC α-T14iB
F-16iM T:650×400 ATC-14 X-500 Y-400 Z-330 BT-30 8000rpm Oil auto lublication Coolant 200L with in-flight flush Spindle・LMguide・XYZ axi…
Vertical Machining-center SUGINO SCV-1122TE
F-18i-M High torque 8,000rpm ATC-15 BT-30 T:φ750 Turntable X-400 Y-280 Z-250
CNC Tapping center KIRA KPC-30B
F-21i-MA T:600×380 S:X-500 Y-380 Z-300 50～8000rpm BT-30 ATC-20 (full cover） Spindle through coolant Oil hole system Tool length mea…
CNC Tapping center TAKISAWA MAC-V05
F-21iM T：360×250 X-320 Y-240 Z-240 Table to spindle：130～370㎜ ATC-4 10000rpm BT-30 Synchronized Tap -10000rpm Tap：M8 Drill：φ12（ADC） …
CNC Tapping center TAKISAWA MAC-V05
F-21iM T：360×250 X-320 Y-240 Z-240 Table to spindle:130～370mm ATC-4 6000rpm BT-30 Synchronized Tap-6000rpm Tap：M12 Drill：φ14（ADC）
Vertical Machining Center MORI SEIKI DuraVertical 5060
MSX-504Ⅲ MAPPSⅢ T:900×600 X-600 Y-530 Z-510 10,000rpm BBT-40 Dual contact ATC-30 1.5MPa spindle through coolant Ai profile control…
Vertical Machining-center MAKINO GF6
Professional-3 T:1400×600 X-1050 Y-600 Z-560 30～8000rpm ATC-20 Super GI control More less scale feedback 1μm FF-PATH package Mold pa…
Vertical Machining-center MITSUI VU65A
F-16MC T:1500×600 X-1280 Y-650 Z-610 200～20,000rpm BBT-40 ATC-40 3.0MPa center through Oil hole system 2.2Kw High accuracy contou…
Vertical Machining Center MAZAK VCN535C-Ⅱ
MAZATROL Matrix Nexus T:1300×550 BT-50 S:X-1050 Y-530 Z-560 8,000rpm ATC-24 Tool length measurement Touch sensor MP3（Renishaw） Mist…
Vertical Machining-center OKK PG8
F-16iM T:720×410 ATC-20 X-510 Y-400 Z-400 100～12000rpm NURBS interpolation Hyper HQ control Data server Custom macro B Helical inte…
ROBO DRILL FANUC α-T14iEL
F-31i-A5 T：850×410 ATC-14 X-700 Y-400 Z-330 100～10000rpm AI outline control Tool length measuring In-machine measuring Mist collector …

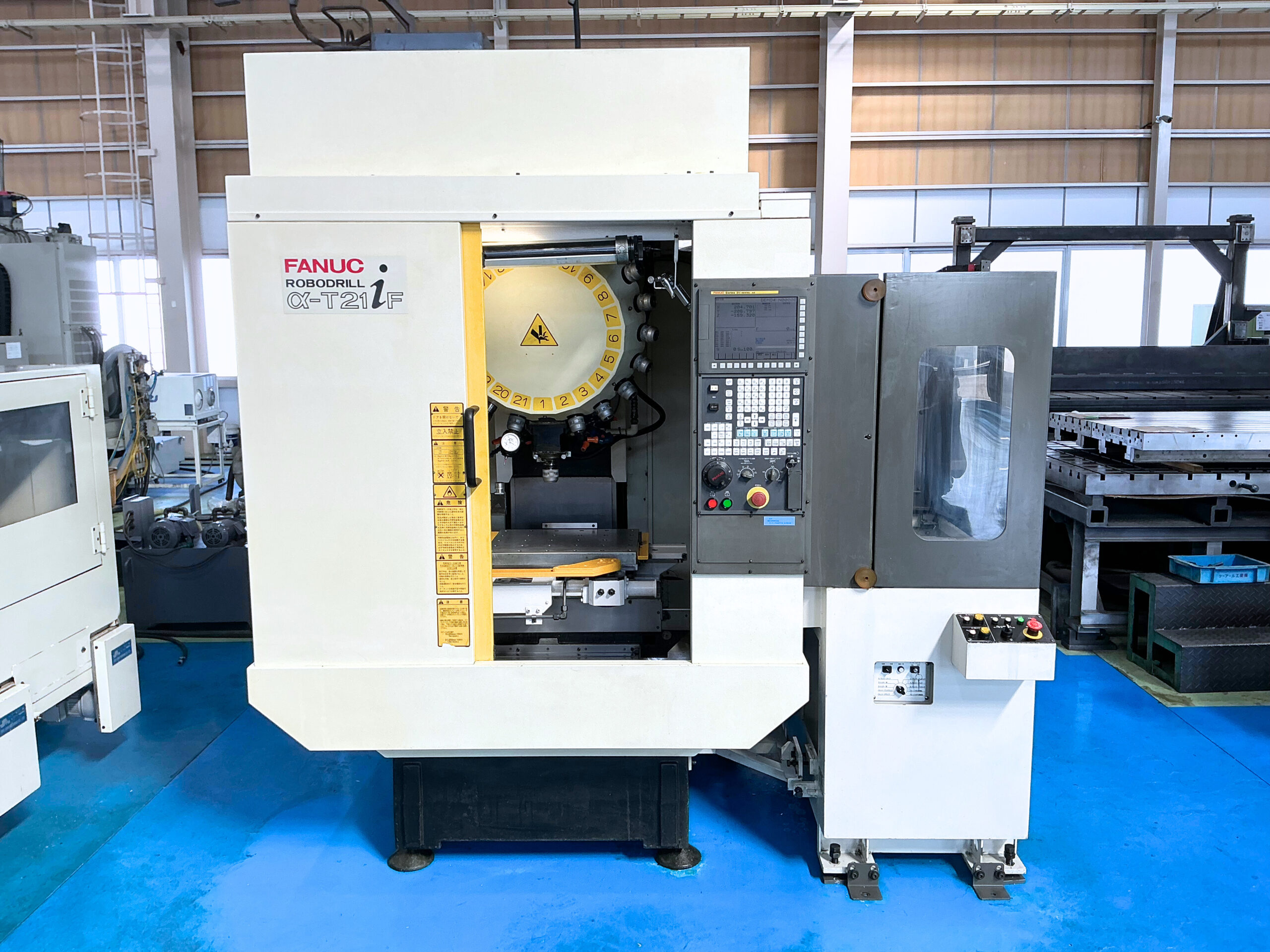

ROBO DRILL FANUC α-T21iE
F-31iM T:650×400 ATC-21 X-500 Y-400 Z-330 24000rpm BT-30 AI contour control Oil lubricant Work light Signal indicator Coolant tank
Vertical Machining-center YASUDA YBM-950V
F-30iA T:540×1080 ATC-30 X-900 Y-500 Z-350 20,000rpm Spindle cooling system Table load:800kg
Vertical Machining-center MAZAK VCN-410A
640M NEXUS T：900×410 X-560 Y-410 Z-510 Table～Spindle：660mm 12000rpm BT-40 ATC-30 AC18.5kW Tapping tornado Automatic tool length measu…
Vertical Machining-center MORI SEIKI NV-4000DCG
MSX-501Ⅲ(F-18iMB MAPPS) T: 700×450 X-600 Y-400 Z-400 12000rpm BBT-40 ATC-20 Fast data server AI contouring control Custom macro TSUDA…
Tapping Center BROTHER TC-S2A
CNCーA00 T:600×300 X-480 Y-360 Z-270 10～10000rpm BT-30 TAP:6000rpm ATC-14 YUKIWA CNC round table YNC200L & ST-160 150㎜High column …
Vertical Machining-center Toyo Seiki TVT-30S
F-21MB T:650×400 X-500 Y-400 Z-300 100～8,000rpm BT-30 ATC-12
Vertical Machining-center MAZAK MTV515/40
MAZATROL M PLUS T:1300×550 ATC-30 X-1050 Y-510 Z-560 Table～Spindle：760mm 25～6000rpm BT-50 AC15Kw High speed synchronized tap Spindle t…
Vertical Machining-center MAKINO V56
Professional-5 T:1050×550 ATC-25 X-900 Y-550 Z-450 Table Load：800Kg 50～20000rpm HSK-A63 Table～Spindle:150～600mm Bite Tool Cutting Ad…
CNC Tapping Center BROTHER TC-22A
CNCーA00 T:650×400 X-500 Y-400 Z-410 12～12000rpm TAP:8000rpm ATC-18 YUKIWA CNC round table YNC200L & ST-160 150mm high column Automat…
CNC Tapping Center BROTHER TC-22A
CNCーA00 T:650×400 X-500 Y-400 Z-410 12～12000rpm TAP:8000rpm ATC-18 YUKIWA CNC round table YNC200L & ST-160 150mm high column Automat…
Vertical Machining-center MORI SEIKI SV-500/40
MSC-501（F-18iMA） T:1000×600 X-800 Y-510 Z-510 10000rpm BT-40 ATC-30 Rigid TAP Advanced control Helical interpolation Scale feedback…
Vertical Machining-center MORI SEIKI MV-40B
MSD-516(F-16M) T：1100×450 ATC-20 X-800 Y-410 Z-510 12000rpm BT-40 Rigid TAP Z axis Scale feedback
ROBO DRILL FANUC α-T21iE
F-31iM T:650×400 ATC-21 X-500 Y-400 Z-330 24000rpm BT-30 AI contour control Automatic lubrication oil Internal light Coolant tank
Long table Vertical Machining-center KIRA KN-40VB-2000ST
F-21i-MB T：2800×400 ATC-20 X-2000 Y-350 Z-400 160～8000rpm BT-40 10HP Table load: 1000Kg Coolant through spindle Custom macroB Righd TA…
Vertical Machining-center OKUMA MC-50VA
OSP-7000M T:1300×510 X-1050 Y-510 Z-560 10～5000rpm Synchronized TAP Tool compansation 100sets Coordinate calculation Area cutting W…
Vertical Machining-center MAKINO SEIKI MSA40-40-PCM6
F-16M T:800×450 ATC-40 X-600 Y-400 Z-400 100～10000rpm With tool
Vertical Machining-center KURAKI KV-2000
F-15M T:2100×700 ATC-32 X-2000 Y-800 Z-760 30～3000rpm BT-50 18.5Kw
ROBO DRILL FANUC α-T14iD
#30 Spindle (Max)～10,000(rpm) X-500 Y-400 Z-330 Input 3φ200V 50/60Hz 10kva Coolant tank No. 503
Vertical Machining-center MAKINO SEIKI MSA40-60
F-15M Ｔ:800×450 ATC-60 X-600 Y-400 Z-400 Scale feedback 1000～20000rpm BT-40 AC7.5Kw High-speed high-precision function Custom macro …
Vertical Machining-center HAMAI MC-3VS
F-0M T:600×380×2APC X-510 Y-410 Z-410 20～5000rpm BT-40 7.5Kw ATC-24 With tool
Liner motor drive Vertical Machining-center MAZAK SVC-2000L/120
MAZATROL FUSION-640M T:3400×510 ATC-30 X-3048 Y-510 Z-510 Rapid-120m（X） 15000rpm BT-40 Big-Plus AC22Kw Core cooled ball screw Y・Z …
Double column Machining-center MAZAK AJV25/404N
MAZATOROL-M32 T:1240×550 ATC-40 X-1000 Y-508 Z-460 10000rpm BT-40 Synchronized TAP High precision function Memory-243ｍ Chip conveyor
Vertical Machining-center YASUDA YBM640V-PC
F-16MB T：600×450 ATC-30 X-600 Y-400 Z-350 50～10,000rpm BT-40 Spindle coolant system Table load：700kg Memory640mScale feedback Custom m…
Vertical Machining-center YASUDA YBM-8120V-PC
F-15M T:800×1000×2APC ATC-60 X-800 Y-1200 Z-450 ATC-60 Inductsin Scale Feedback X Y Z 6000rpm BT-40 Spindle coolant system Coolant …
Vertical Machining-center OKUMA MC-6VA
OSP-5000MG T : 1800×780 ATC-20 X-1250 Y-630 Z-610 30-4000rpm BT-50 table - Spindle : 230-840mm
ROBO DRILL FANUC α-T14iD
＃30 Spindle (MAX)～10,000(rpm) X-500 Y-400 Z-330 Input 3φ200V 50/60Hz 10KVA 2000kg New spindle replaced in Sep 2020 Coolant tank …
Long Vertical Machineg-center KIRA KN-40VB-2000ST
F-21i-MA T：2800*400 ATC-20 X-2000 Y350 Z-400 160～8000rpm BT-40 Load: 1000Kg Weight 8ｔ
Vertical Machining Center OKK PCV-620
Long type GMC T:2300*640 ATC-24 S:2040*635*635 Max load:1.8t 30～6000rpm BT-50 7.5kw Synchronized TAP XY scale feed back …
Vertical Machining Center OKUMA HOWA MILLAC-852V
OH-OSP-HMi T:2200*850 ATC-36 S:2050*850*750 30～6000rpm BT50 Table～Spindle：200～950㎜ Max load：2.5t Spindle hp 18.5/22Kw Use…
