メーカー : Makino Milling

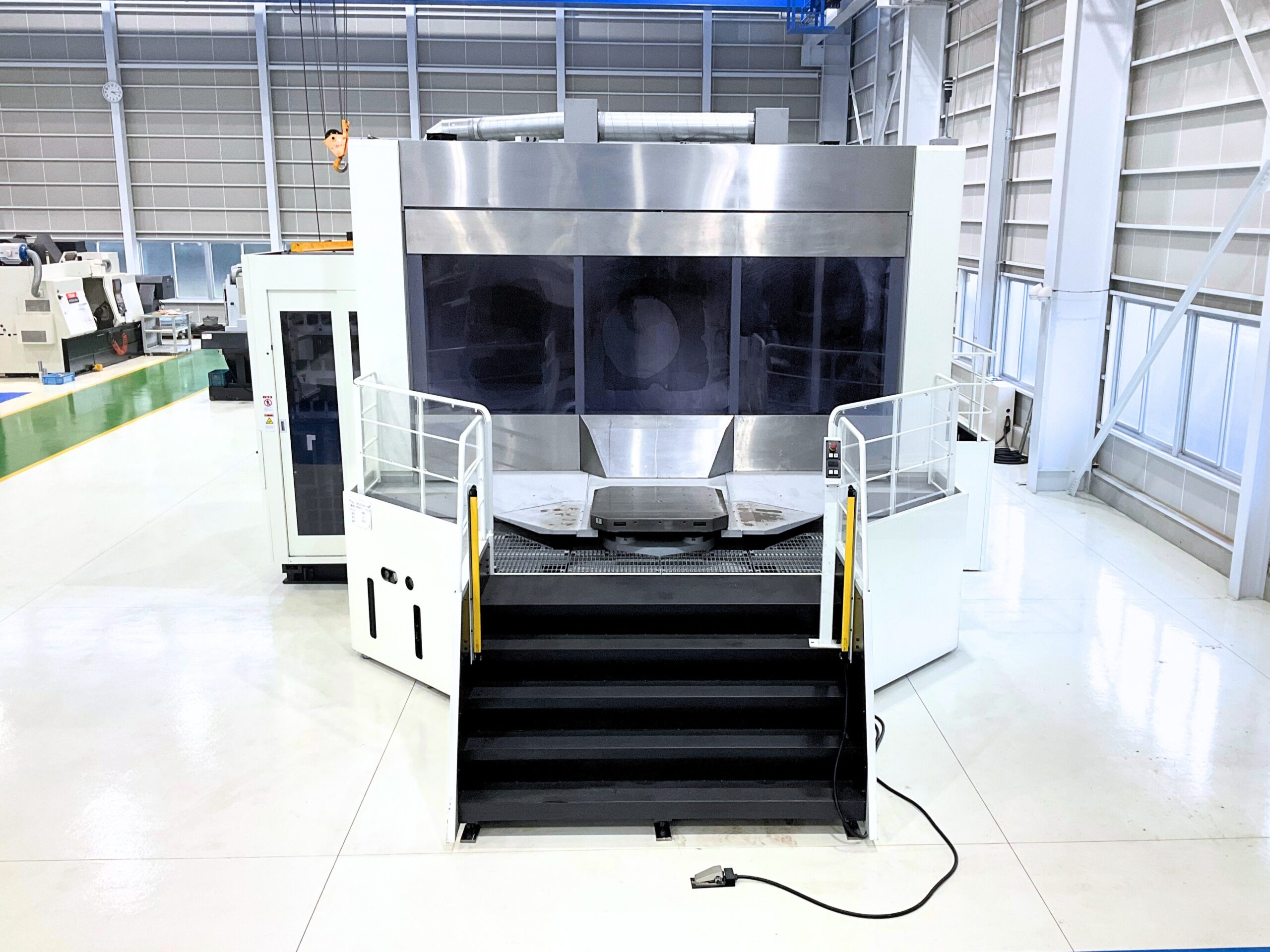

5axis Machining-center MAKINO T1
Professional6 T:1000×1000×2APC X-1500 Y-1300 Z-2000 A--110～45° B-360° 3000kg 12,000rpm HSK-A100 ATC-97 Rigid tap Spring neck machini…
Vertical Machining-center MAKINO V-77
Professional-5 ATC-20 T:1400x700 Pallet: 1250×630×2APC X-1200 Y-700 Z-650 High column-200㎜ 50～12000rpm BBT-50 AC22Kw More less sc…
Vertical Machining-center MAKINO V-33
Professional 5 T:750×400 ATC-15 X-600 Y-400 Z-350 200～20000rpm HSK-63 Super GI.4 control Rigid TAP Helical interpolation Scale feedba…
Turret Milling MAKINO KVP-55
T:1100×250 250～4000rpm NT-40 X-550 Y-250 Z-350 Qiill-100 3 axis digital
Vertical Machining-center MAKINO V55-A15
Professional 3 T:1000×500 X-900 Y-500 Z-450 20000rpm HSK-63 ATC-15 Super GI control XY scale feed back 1μm Trough spindle coolant(15…
EDM MAKINO EDNC-6
80A ES200A T:800×550 X-650 Y-450 Z-500 Tank size: 1100×750×450 Table load: 1500kg HS-Rib Electrode weight: 100Kg Universal holder…
Horizontal Machining-center MAKINO MCC2513-A60
Professional 5 T:2900×1000 X-2500 Y-1300 Z-1000 B-0.0001° 15000rpm HSK-A100 ATC-60 Table to spindle: 75～1425mm Load: 12000㎏ Rotary t…
Vertical Machining-center MAKINO V55-A80
Professional-3 T:1000×500 X-900 Y-500 Z-450 20000rpm HSK-63 ATC-80 Super GI control Moreless scale feed back 1μm Through spindle coola…
Horizontal Machining-center MAKINO A-77e
Professional-3 □500×2APC ATC-60 X-730 Y-730 Z-800 TIndex：0.001° 20～12,000rpm HSK-A100 Mowerless scale feedback 0.1μ Spindle through …
Vertical Machining-center MAKINO GF6
Professional-3 T:1400×600 X-1050 Y-600 Z-560 30～8000rpm ATC-20 Super GI control More less scale feedback 1μm FF-PATH package Mold pa…
Vertical Machining-center MAKINO V56
Professional-5 T:1050×550 ATC-25 X-900 Y-550 Z-450 Table Load：800Kg 50～20000rpm HSK-A63 Table～Spindle:150～600mm Bite Tool Cutting Ad…
CNC Milling MAKINO BNⅠ-85
F-0M T:1350×575 X-850 Y-500 Z-400 Center of spindle～Surface of column : 110～610mm 10～2200rpm NT-50 Scaling
Horizontal Machining-center MAKINO A-77
Professional-3 □630×16APC ATC-244 X-800 Y-750 Z-770 TIndex：0.001° 18000rpｍ HSK-A100 3D pallet magazine16 Mowerless scale feedba…
CNC Milling MAKINO AVⅢNC-85
F-0M T:1350×480 X-850 Y-500 Z-400 Table load:700Kg 5～4000rpm(Variable) 0.18 0.2kW More less scale feedback XY axis Helical inferporat…
Vertical Machining-center MAKINO V-77L
Professional-5 ATC-30 200mm High column T:1650x700 X-1500 Y-700 Z-650 C-0.0001 50～20000rpm HSK-A63 Coolant cooler Multi faces cutting…
Turret MILLING MAKINO KVJP-55
T：1100×250 80～4000rpm(Variable soeed) X-550 Y-250 Z-300 NT-40 2 axis digital
CNC Milling MAKINO AVANC-74
Professional A T：1050×400 X-710 Y-400 Z-360 Quill-100 4000rpm NT-40 Tool automatic attach / detach apparatus
Vertical Machining-center MAKINO V33-5XB-A40
Proffessional-5 Rotary table: φ200 X-650 Y-325 Z-350 30000rpm HSK-F63 ATC-40 Column rasing 200mmUP Right Tap NC Rotary table with tilt…
5axis Horizontal Machining-center MAKINO MC56-5XA-A40
Professional-3（FANUC-16iM) □320 Max work: φ600 X-510 Y-635 Z-635 Table: 0.001° Table tilt(A axis)115°+20°～-95° Table rotation(B axis)3…
5axis Machining-center MAKINO N2-5XA
Professional-F(FANUC-31i) T:φ300 X-300 Y-300 Z-230 B-0.0001 C-0.0001 200～20,000rpm HSK-A40 Table load: 150Kg Scale feedback XYZ 0.05…
